Multi-functions meters for Low Voltage and High Voltage applications

Multi-functions meters for measuring electrical parameters for single & three phase low and high voltage networks.

Introduction

Multi-function meter measures the extent of electrical values for all LV or LV/HV networks. It allows starting from the front panel to configure and display all the electric parameters and to exploit the functions of measurement, metering and energies management,harmonics analysis, remote control and control state of control devices, communication and detection of high voltages,peaks and voltage disconnections. This device is a multi-function meter for measuring electrical values for single, two and three phase low and high voltage networks.

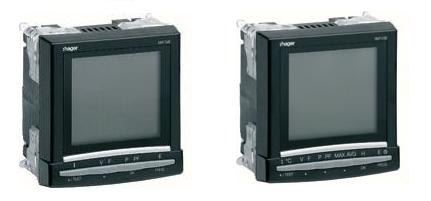

SM102E

Measurement in real effective values (TRMS) of:
  • current per phase and neutral in instant and maximum value
  • phase-to-neutral and phase-tophase voltages, In instant
  • frequency, In instant
  • active positive power total in instant and maximum value
  • reactive positive power total in instant and maximum value
  • apparent positive power total in instant and maximum value
  • power factor (PF) total with inductive or capacitive indication
  • harmonic distortion rate (THD) up to 51 on phase-to-neutral and phase-to-phase voltages and currents (THD 3U, THD 3V, THD 3I)
Energies meters
  • positive active energy meter
  • positive reactive energy meter
  • programmable hour run meter

SM103E

  • Same measures as for SM102E with average values
  • active and reactive power on 4 quadrants (±)
  • harmonic distortion rate (THD) up to 51 on phase-to-neutral and phase-to-phase voltages and currents (THD 3U, THD 3V, THD 3I, THD In)
Metering:
  • active and reactive power meter on 4 quadrants
  • apparent power meter
  • programmable hour run meter

Accessories Equipments

  • backlit LCD screen
  • direct access key for currents (instantaneous and max. values), current THD and set up wiring correction
  • direct access key for voltages,frequency and voltage THD
  • direct access key for active, reactive and apparent power (instantaneous and max. values) and power factor
  • direct access key for energies and hour meters

Technical Characteristics

 SM102ESM103E
CT primary
10000A
10000A
CT secondary
5 A
5 A
Measurement range
0 - 11 kA
0 - 11kA
Input consumption
0.6 VA
≤ 0.1 VA
Accuracy
0.2 %
0.2 %
Sustained Overload
6 A
6 A
Intermittent overload
10 x In for 1s
10 x In for 1s
Direct measurement between phases
50 - 500 V
18 - 700 V
Direct measurement between phases and neutral
28 - 289 V
11 - 404 V
Frequency
50/60 Hz
50/60 Hz
Input consumption
≤ 0,1 VA
≤ 0,1 VA
Accuracy
0,2 %
0,2 %
Power measurement accuracy
0,5 %
0,5 %
Power factor measurement accuracy
0,5 %
0,5 %
Frequency measurement range
45 - 65 Hz
45 - 65 Hz
Frequency measurement accuracy
0,1 %
0,1 %
Active energy accuracy
class 0,5 S
class 0,5 S
Reactive energy accuracy
class 2
class 2
Measurement updating period
1 s
1 s
Copper conductor connection capacity
- voltage
- current
flexible or rigid: 2,5 mm²
flexible or rigid: 6 mm²
flexible or rigid: 2,5 mm²
flexible or rigid: 6 mm²

Auxilliaries for SM102E & SM103E

click to enlarge
click to enlarge
Click to enlarge
Click to enlarge
